Description

Overview

Cable V is used for power transmission and distribution system, 0.6 / 1 kV voltage, fixed installation.

Applied standard

– TCVN 5935-1 / IEC 60502-1.
– TCVN 6612 / IEC 60228.
– TCVN 5064 – 1994; TCVN 5064: 1994 / SDĐ 1: 1995.

Cable identification

– By color of insulation:
+ Duplex cable: black, gray.
+ Triplex cables: red, yellow, blue.
+ Quadruplex cables: red, yellow, blue, black.
– Or according to customer requirements.

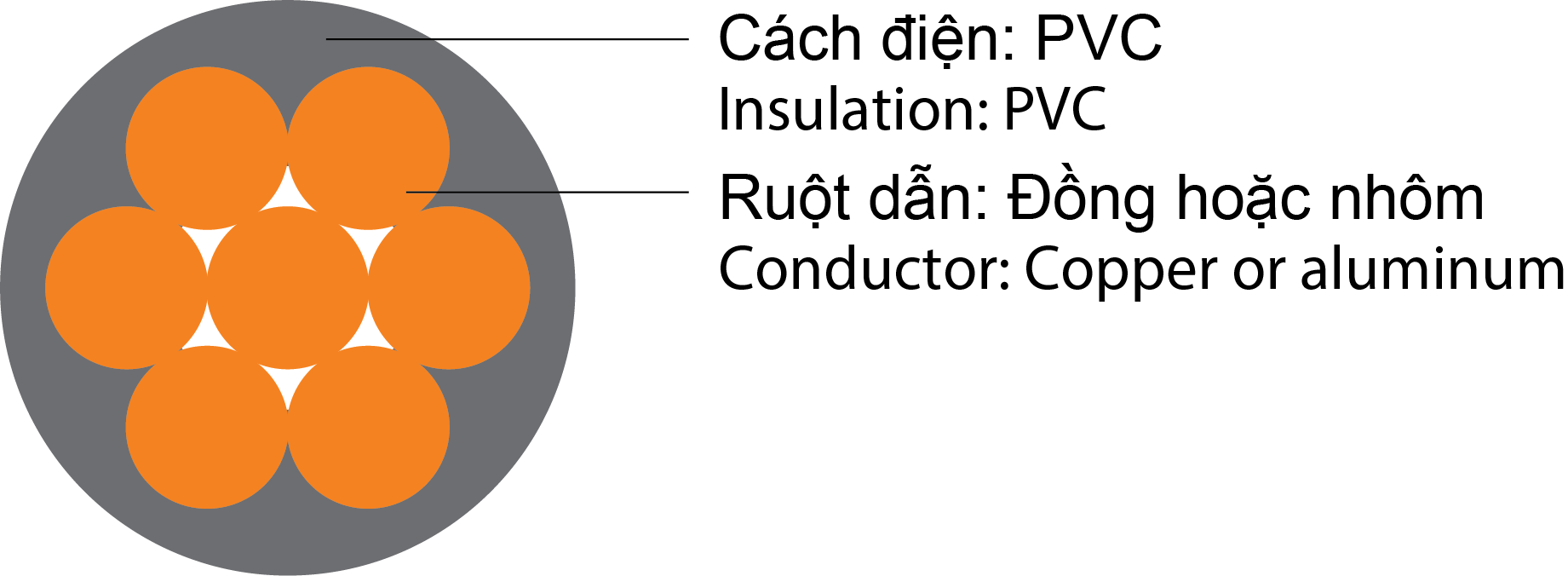

Structure

Technical features

– Voltage level U0 / U: 0.6 / 1 KV.
– Test voltage: 3.5 kV (5 minutes).
– Permissible long-term working temperature for conductors is 70ºC.
– The maximum allowable temperature of the conductor when short-circuiting for no more than 5 seconds is 160ºC
