Description

CVV cable is used for power transmission and distribution system, 300/500 V voltage, fixed installation.

Applied standard

– TCVN 6610-4 / IEC 60227-4.
– TCVN 6612 / IEC 60228.

Cable identification

– By color of insulation: Red – yellow – blue – black.
– Or according to customer requirements.

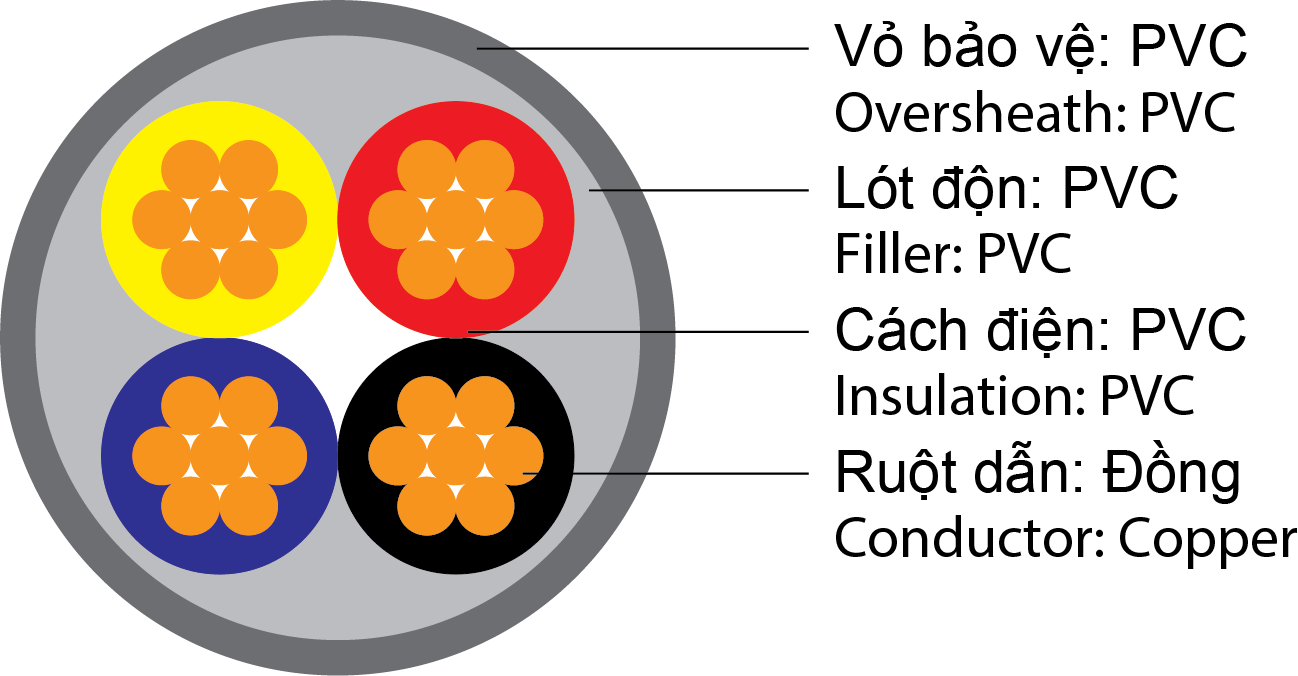

Construction

Technical characteristics

– Voltage level U0 / U: 300/500 V.
– Test voltage: 2 kV (5 minutes).
– Permissible long-term working temperature of conductor is 70ºC.
– The maximum permissible temperature of the conductor when short-circuiting for no more than 5 seconds is 160ºC.
